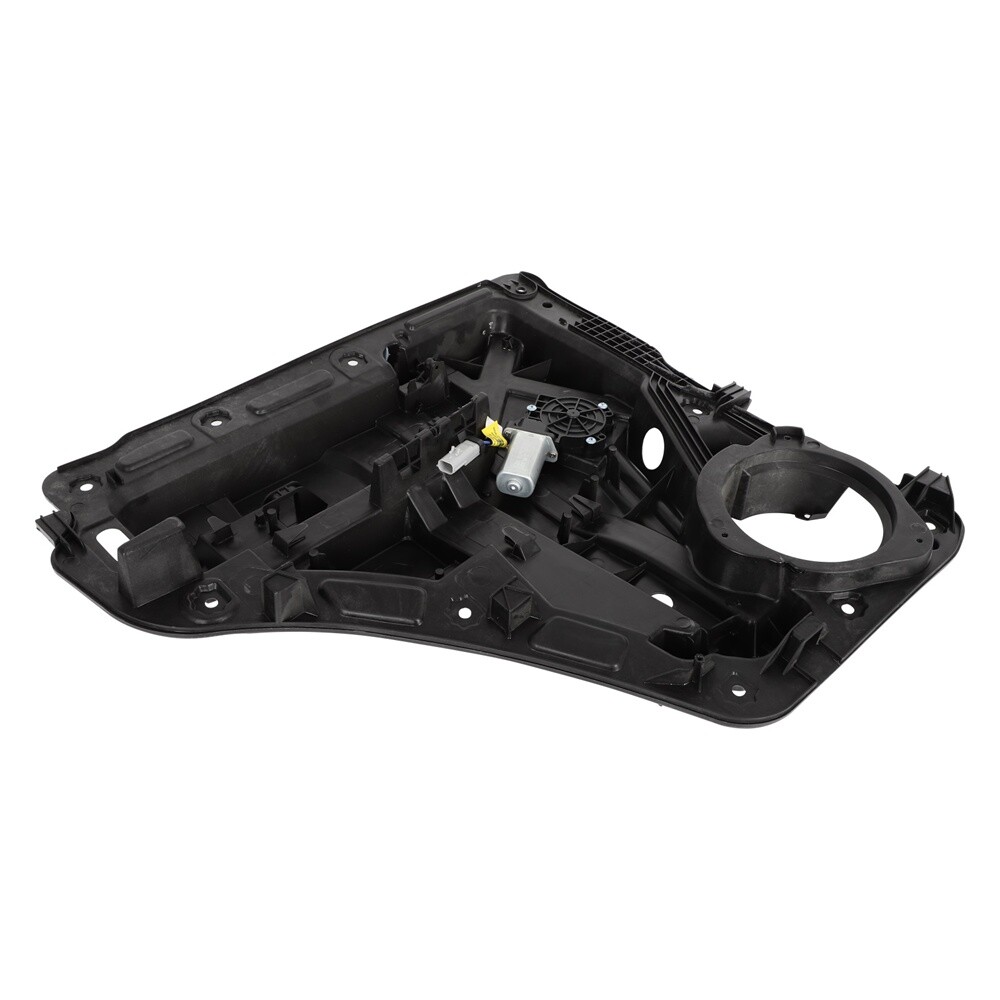

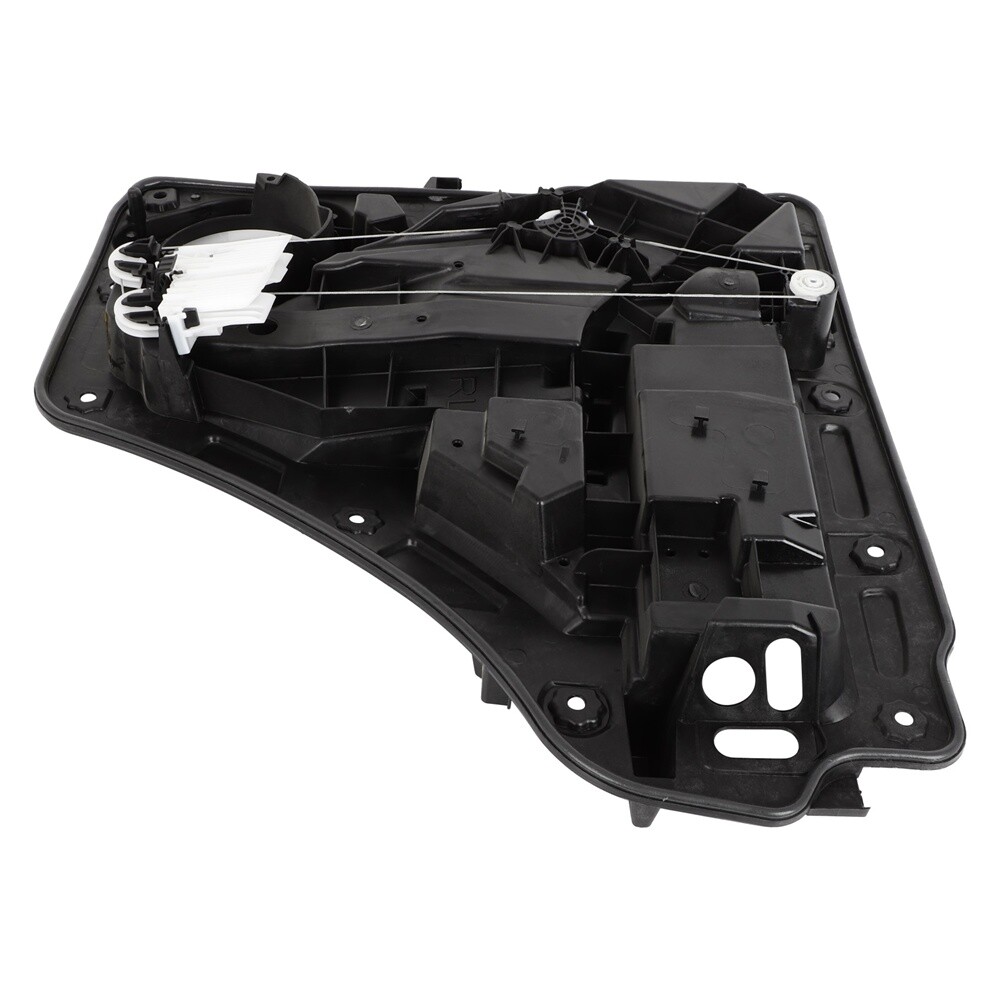

Power Window Regulator with Motor For 2008-2013 Jeep Liberty Rear Driver Side

Fitment:
2013 Jeep Liberty (Mexico)
2008-2012 Jeep Liberty


Position:
Rear Left


Package Included:
1 x Window Regulator

What Is A Window Regulator On A Car?

A window regulator is a mechanical device in a car that is responsible for raising and lowering the windows. It is a crucial component of a car's power window system. The window regulator converts the rotational motion of an electric motor into linear motion, which raises and lowers the window.

What Are Common Issues With Window Regulators?

• Broken gear assembly
• Malfunctioning motor
• Problems with the track
• Worn bushings
• Loose or corroded connections

How to Replace a Power Window Motor

Part1  Disconnecting the Window from the Motor

1. Remove the interior door panel.
2. Gently remove the plastic door cover.
3. Locate the window mounting bolts.
4. Move the window if necessary to access the bolts.
5. Remove the bolts while a friend supports the window.
6. Raise the window up into the door frame.
7. Use masking tape to secure the window in place.

Part2  Disconnecting the Motor and Regulator

1. Remove the window regulator bolts.
2. Locate and remove the window motor mounting bolts.
3. Disconnect the motor wiring harness connector.
4. Remove the motor and regulator through the access port.
5. Connect the regulator to the new motor.

Part3  Installing a New Power Window Motor

1. Slide the new motor and regulator back into place.
2. Replace the mounting bolts.
3. Reconnect the electrical connector.
4. Remove the masking tape and lower the window back down.
5. Insert the window mounting bolts.
6. Reinstall the plastic liner and interior panel.
